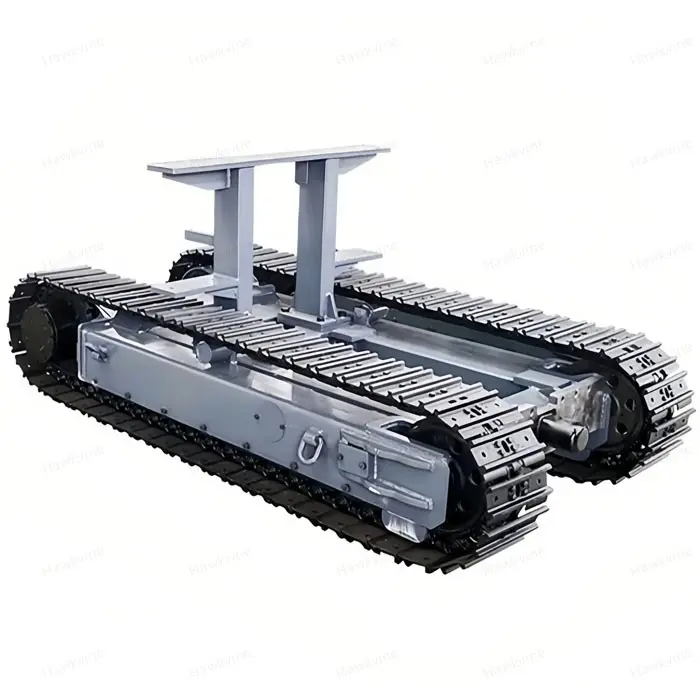

UST2680 Crawler Track Undercarriage Capacity 8000KG Track Width 400mm
We offer a comprehensive range of steel & rubber track solutions, tailored to the full spectrum of crawler equipment applications. Our offerings cover Agriculture, Recycling, Material Processing, Construction, Forestry, Aerial Work Platforms, and numerous other industries.Whether for routine replacement or project-specific needs, our track system parts deliver long-lasting durability and consistent functionality, making them a cost-efficient alternative to imported components.

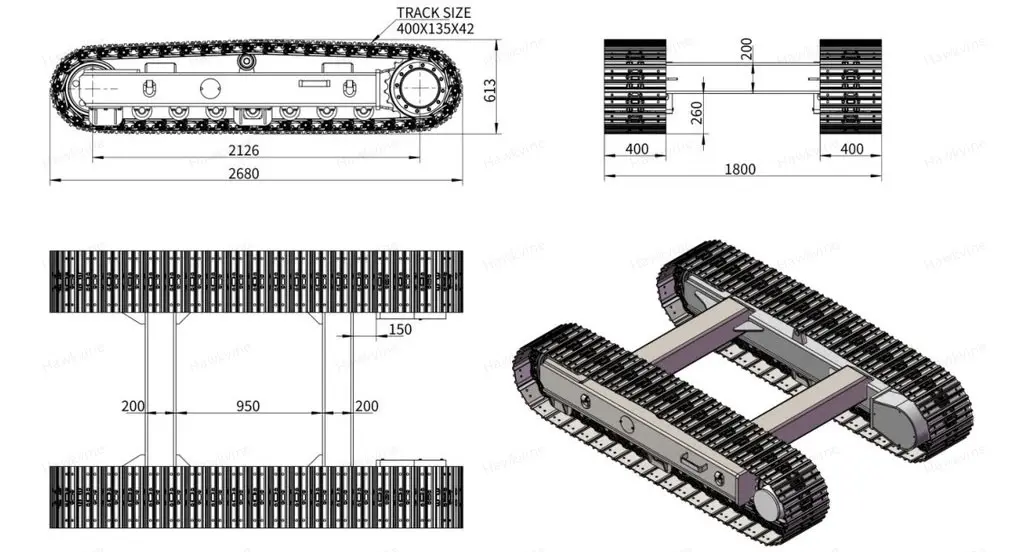

| Part No. | UST2680 |
| Length | 2680mm |
| Track Width | 400mm |
| Track Size | 400x135x42 |
| Track Roller | 5+5 |
| Motor Displacement ml/r | 53/34 |
| Work pressure Mpa | 25 |
| Traction force KN | 99 |
| Travel speed km/h | 2.3/3.6 |
| Ground pressure Kpa | 44 |
| Max grade ability a° | 30 |
| Weight Kg | 1800 |
| Load Capacity Kg | 8000 |
| Pallet size | 2700*2000*720mm |
| Warranty | One Year |
| Method | Hydraulic drive |
