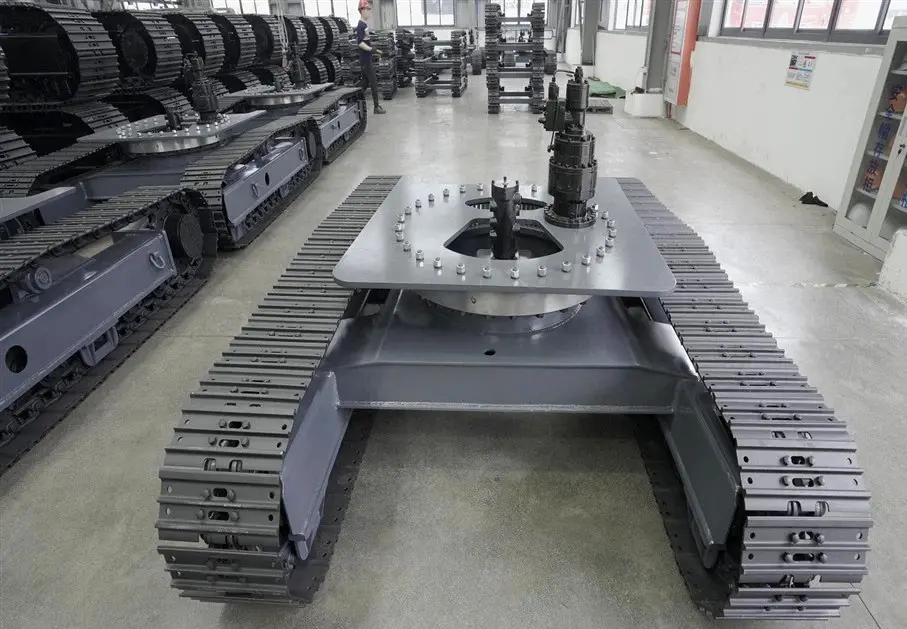

UST2102 Undercarriage system suitable for covering Agricultural, Recycling, Material Processing, Construction, Forestry, Aerial Work Platform and many other sectors.
| Part No. | UST2102 |
| Length | 2102mm |
| Width | 1600mm |
| Track Width | 230mm |
| Track Size | 230x90x49mm |
| Motor Displacement ml/r | 200 |
| Work pressure Mpa | 14 |
| Traction force KN | 34 |
| Travel speed km/h | 3 |
| Ground pressure Kpa | 37 |
| Max grade ability a° | 30 |
| Weight Kg | 800 |
| Load Capacity Kg | 3000 |
| Pallet size | 2100*1800*500mm |
| Warranty | One Year |
| Method | Hydraulic drive |
