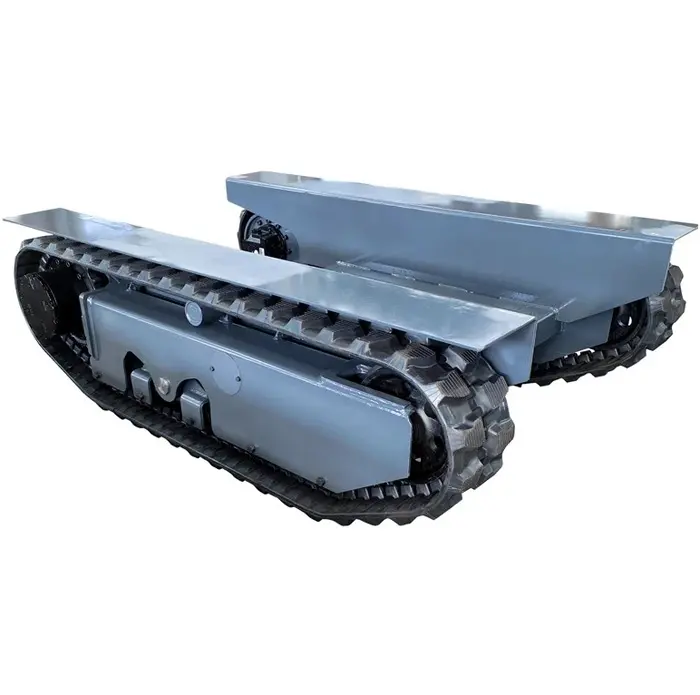

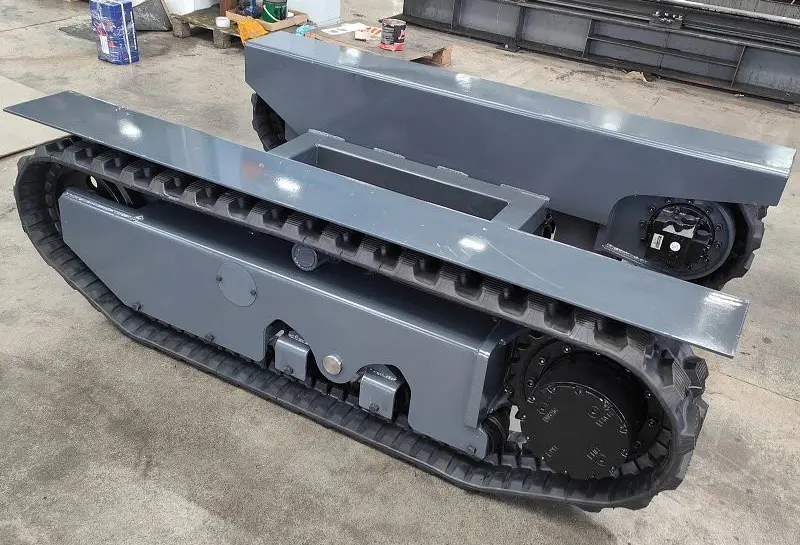

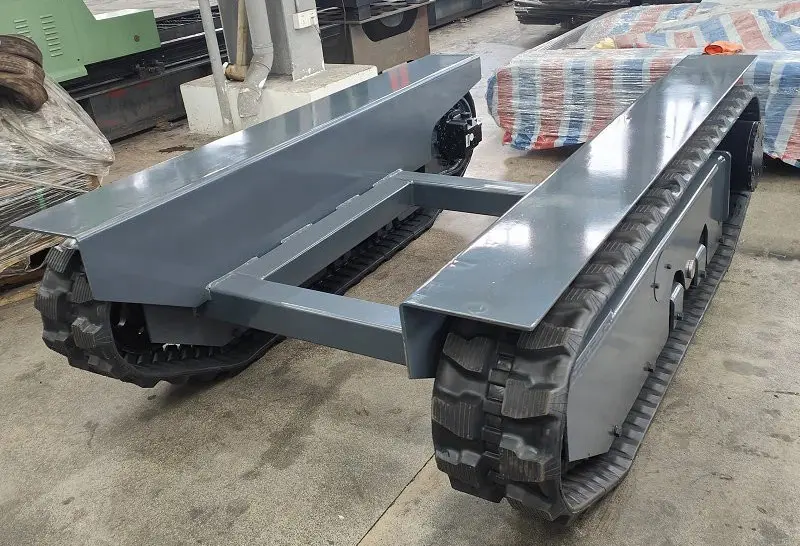

URT2041 Components:
1. Rubber Tracks: These are the main tracks that provide traction and bear the weight of the machine.
2. Idlers: Located at the front and rear, idlers help guide the track and support the weight of the machine.
3. Sprockets: The sprockets are gear-like wheels that pull the track around; they engage with the track links.
4. Rollers: These components support the track’s weight and help in smooth movement over uneven terrain.
5. Track Frame: It holds the entire undercarriage assembly together and provides overall structure and balance.

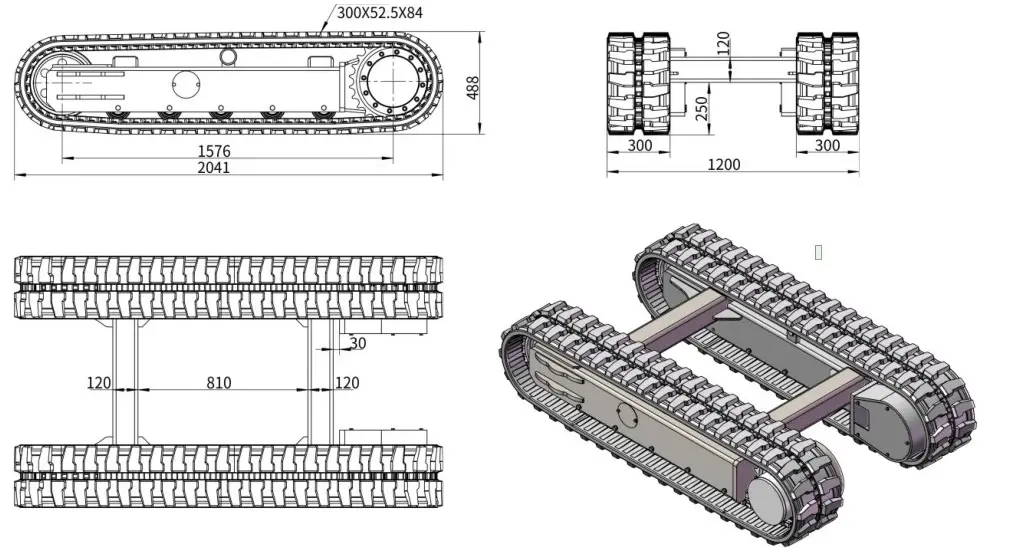

| Part No. | URT2041 |
| Track Length | 2041mm |
| Width | 1200mm |
| Track Width | 300mm |
| Motor Displacement ml/r | 44/22 |
| Work pressure Mpa | 27 |
| Traction force KN | 114 |
| Travel speed km/h | 1/2 |
| Ground pressure Kpa | 36 |
| Max grade ability a° | 30 |
| Weight Kg | 700 |
| Load Capacity Kg | 3500 |
| Pallet size | 2050*1400*590mm |
| Warranty | One Year |
| Method | Hydraulic drive |
