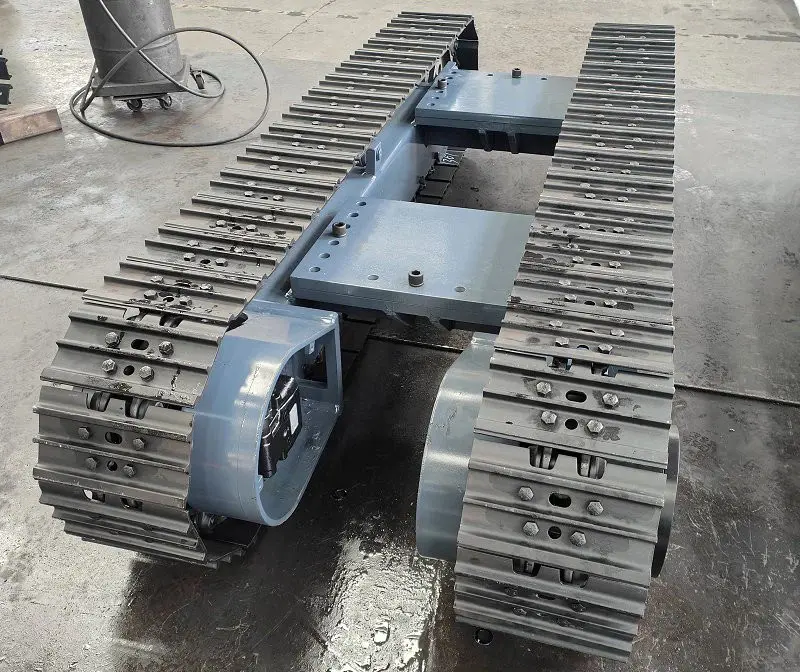

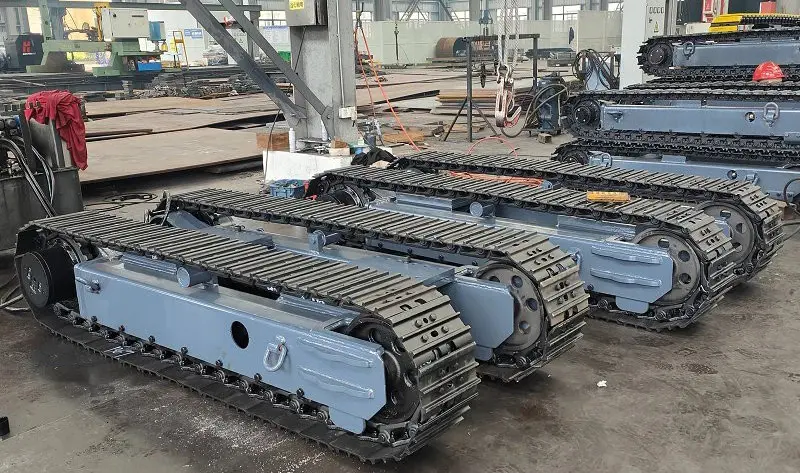

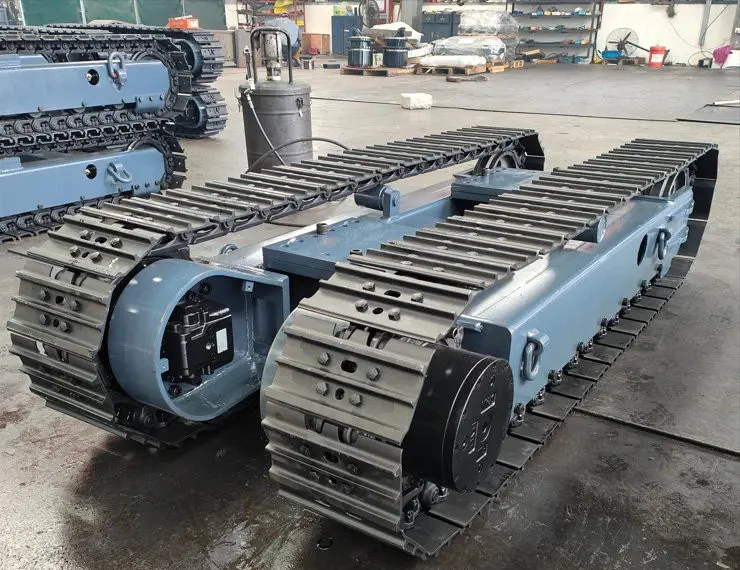

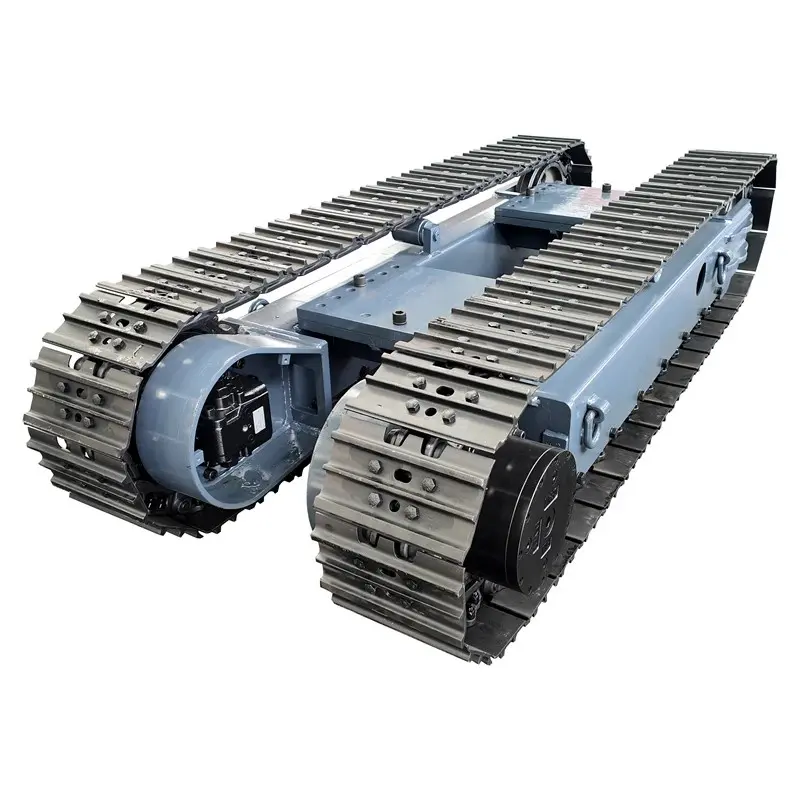

UST2060 Crawler Track Undercarriage generally refers to a specific type of undercarriage system used in construction and mining equipment, particularly in vehicles like compact track loaders. It is widely used in all kinds of drilling rig, excavator, scoring drill, Aerial work platform, Crane, crane tube machine, welding mobile station ,agriculture machine ,etc.
| Part No. | UST2060 |
| Length | 2060mm |
| Width | 1200mm |
| Track Width | 230mm |
| Motor Displacement ml/r | 200 |
| Work pressure Mpa | 12 |
| Traction force KN | 30 |
| Travel speed km/h | 1 |
| Ground pressure Kpa | 34 |
| Max grade ability a° | 30 |
| Weight Kg | 630 |
| Load Capacity Kg | 2500 |
| Pallet size | 2060*1400*510mm |
| Warranty | One Year |
| Method | Hydraulic drive |
