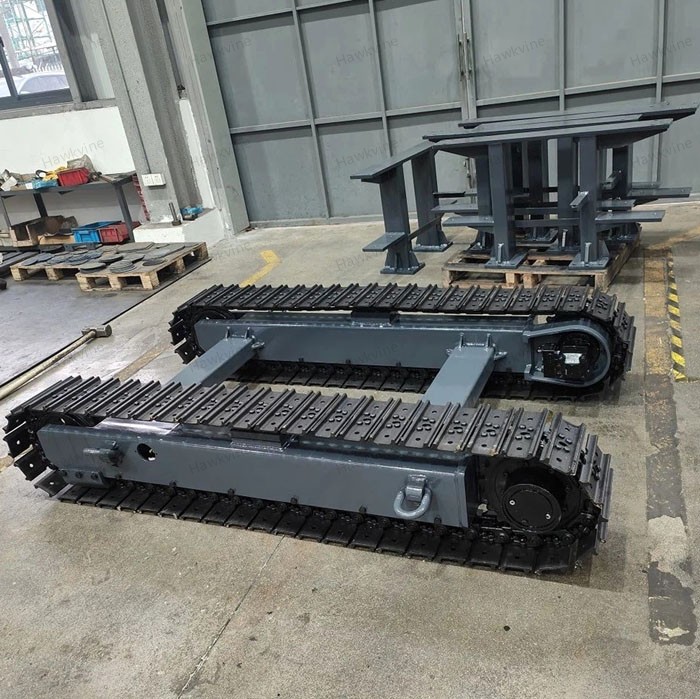

UST1610 Steel Track Undercarriage Chassis features a dual-track configuration on each side, each integrated with a driving device. Each chassis comprises essential components including Sprockets, Idlers, Rollers, Tension Assemblies, and Travel Drives. It is widely applied in a diverse range of equipment, such as drilling rigs, excavators, core drills, aerial work platforms, cranes, pipe cranes, mobile welding stations, and various agricultural machinery, among others.

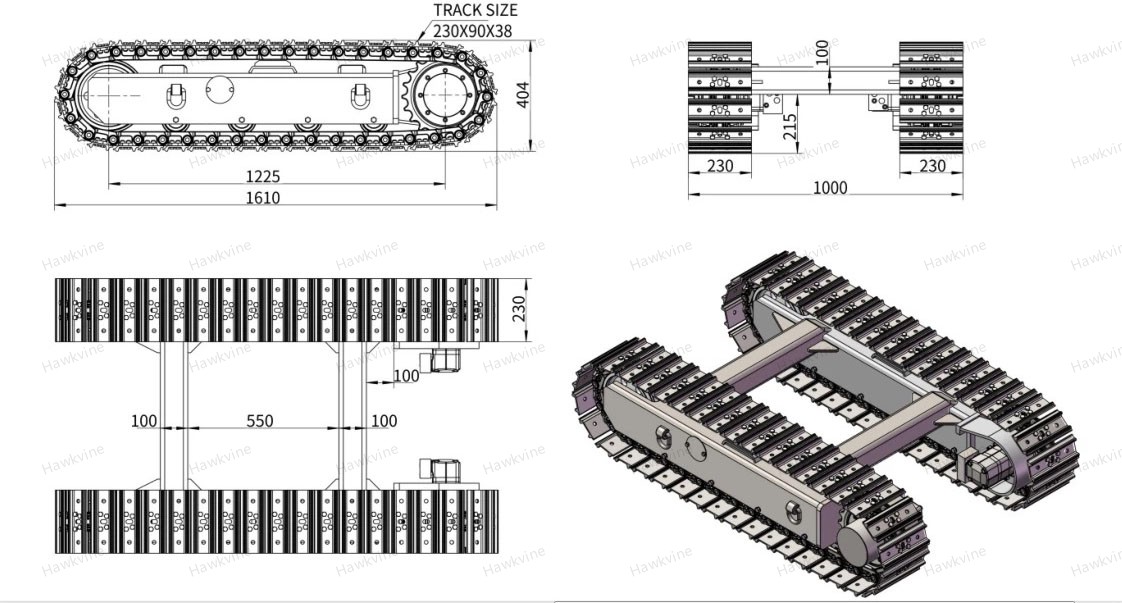

| Part No. | UST1610 |
| Length | 1610mm |
| Track Width | 230mm |
| Track Size | 230x90x38 |
| Track Roller | 7+7 |
| Work pressure Mpa | 14 |
| Traction force KN | 34 |
| Travel speed km/h | 3 |
| Ground pressure Kpa | 35 |
| Max grade ability a° | 30 |
| Weight Kg | 500 |
| Load Capacity Kg | 2000 |
| Pallet size | 1610*1200*500mm |
| Warranty | One Year |
| Method | Hydraulic drive |
