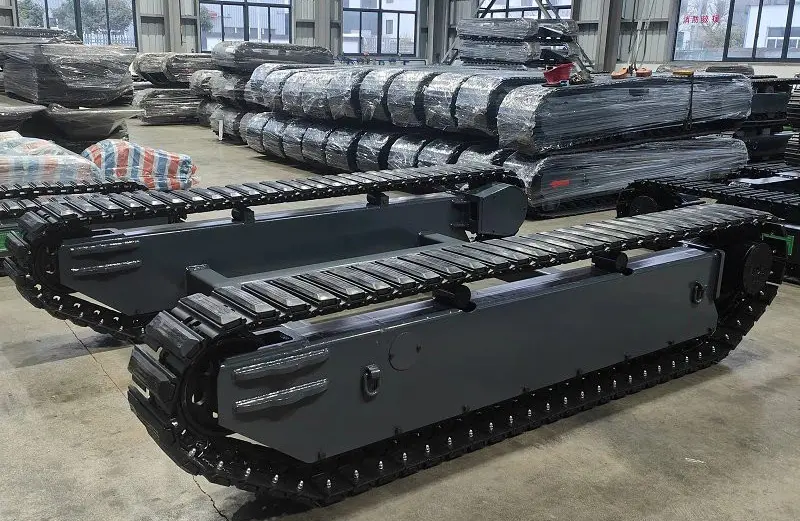

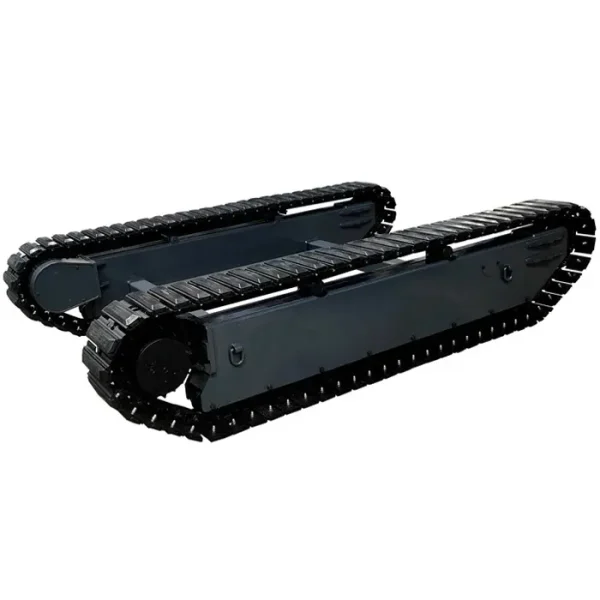

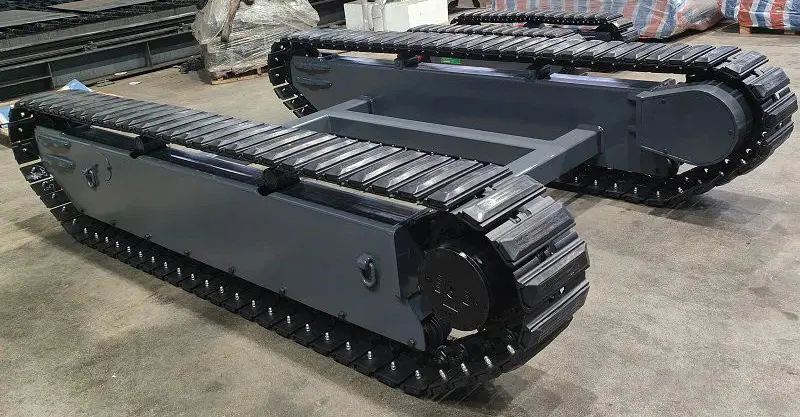

UST3157 Crawler Track Undercarriage Capacity 5000KG
UST3157 Crawler Track with curved bridge angle,using substituted track one undercarriage parts. Supplying a complete range of steel and rubber track solutions
| Part No. | UST3157 |
| Track Length | 3157mm |
| Width | 2000mm |
| Track Width | 300mm |
| Track Roller | 8+8 |
| Motor Displacement ml/r | 44/22 |
| Work pressure Mpa | 27.5 |
| Traction force KN | 52 |
| Travel speed km/h | 1.85/3.7 |
| Ground pressure Kpa | 36 |
| Max grade ability a° | 30 |
| Weight Kg | 1500 |
| Load Capacity Kg | 5000 |
| Pallet size | 3160*2200*800mm |
| Warranty | One Year |
| Method | Hydraulic drive |
