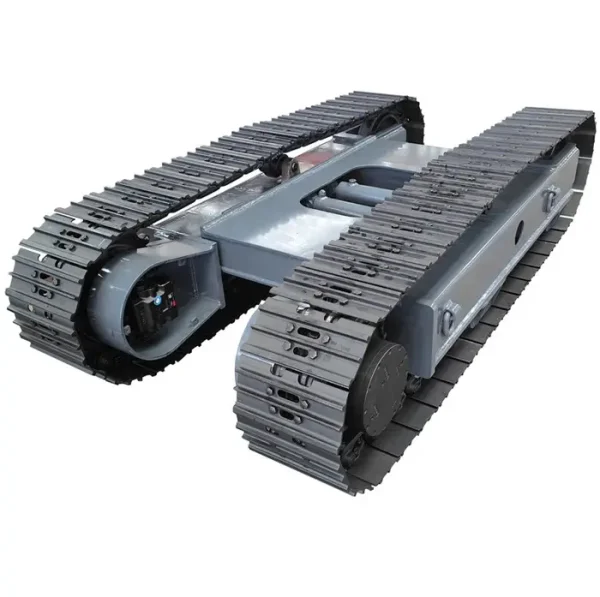

UST2408 Extendable track undercarriage supplies track systems that are hydraulically extendable/can be widened. An extendable track system provides for even better stability. The extendable track systems also take up less space, so they can be transported in compliance with the transport regulations. With the extendable track systems, hydraulic cylinders provide for the extension and retraction movements of the frames. Small types have the advantage here of being able to pass through a standard door opening in some cases.



| Part No. | UST2408 |
| Track Length | 2408mm |
| Width | 1200~1600mm |
| Track Width | 300mm |
| Motor Displacement ml/r | 20.7/10.9 |
| Work pressure Mpa | 26 |
| Traction force KN | 74 |
| Travel speed km/h | 1/2 |
| Ground pressure Kpa | 36 |
| Max grade ability a° | 30 |
| Weight Kg | 500 |
| Load Capacity Kg | 2500 |
| Pallet size | 1860*1450*580mm |
| Warranty | One Year |
| Method | Hydraulic drive |
