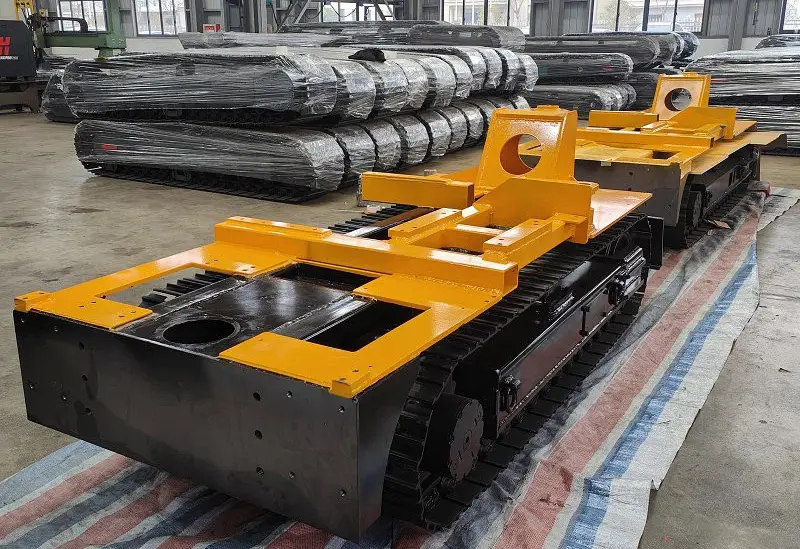

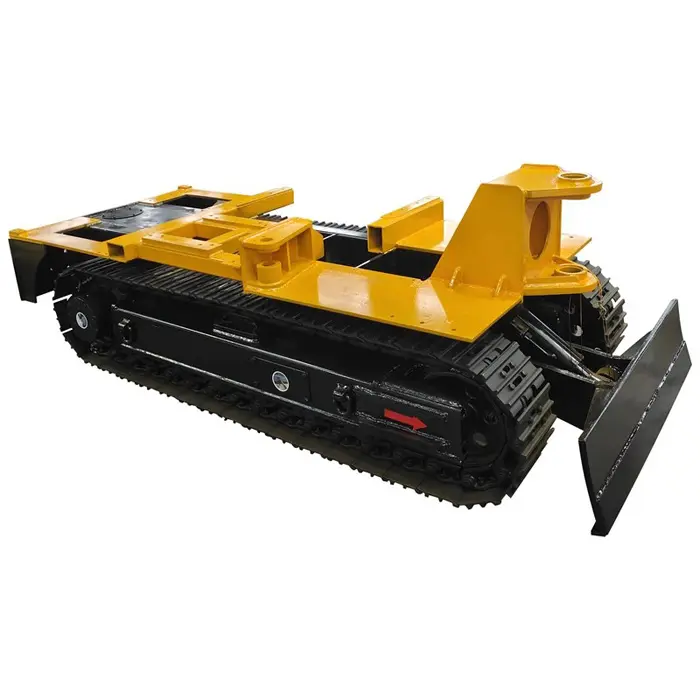

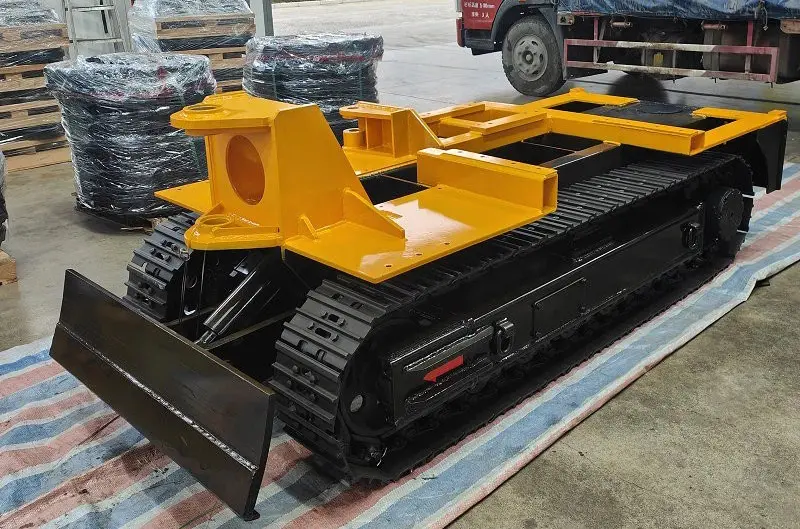

UST2420 Commonly used in heavy machinery like excavators, bulldozers, and tanks, consist of several key components that work together to provide mobility and stability.
| Track Length | 2420m |
| Total Length | 2927mm |
| Width | 1214mm |
| Track Width | 260mm |
| Track Roller | 6+6 |
| Track Sprocket | 1+1 |
| Motor Displacement ml/r | 53/34 |
| Work pressure Mpa | 25 |
| Traction force KN | 99 |
| Travel speed km/h | 2.3/3.6 |
| Ground pressure Kpa | 44 |
| Max grade ability a° | 30 |
| Weight Kg | 1800 |
| Load Capacity Kg | 7000 |
| Pallet size | 2930*1420*730mm |
| Warranty | One Year |
| Method | Hydraulic drive |
