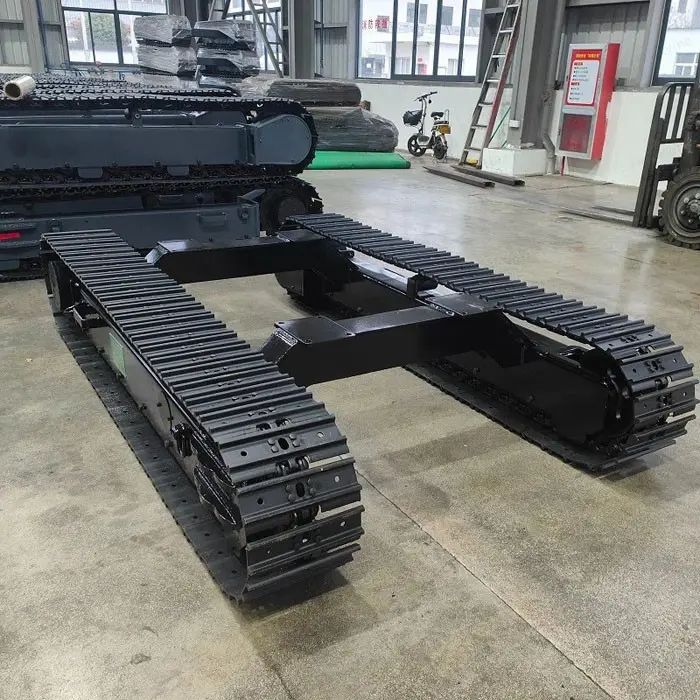

UST2536 Steel Track Undercarriage– High-Quality Undercarriage Components with Superior Compatibility & Durability
Designed for reliable performance, our undercarriage parts seamlessly replace most imported equivalents, offering exceptional cost-effectiveness without compromising on quality. Boasting strong adaptability, they fit perfectly with a wide range of drilling equipment, ensuring stable operation even in harsh working conditions.
Our products are extensively trusted in diverse drilling applications:
Anchoring drills, water well drilling rigs, core drilling rigs
Jet drilling rigs, down-hole drills, crawler hydraulic drilling rigs
Poling rigs, trenchless drills, and other related drilling equipment
Whether for routine replacement or project-specific needs, our track system parts deliver long-lasting durability and consistent functionality, making them a cost-efficient alternative to imported components.
| Part No. | UST2536 |
| Length | 2536mm |
| Track Width | 400mm |
| Track Size | 400x135x40 |
| Track Roller | 7+7 |
| Motor Displacement ml/r | 53/34 |
| Work pressure Mpa | 25 |
| Traction force KN | 99 |
| Travel speed km/h | 2.3/3.6 |
| Ground pressure Kpa | 36 |
| Max grade ability a° | 30 |
| Weight Kg | 1400 |
| Load Capacity Kg | 6000 |
| Pallet size | 2540*1800*660mm |
| Warranty | One Year |
| Method | Hydraulic drive |
